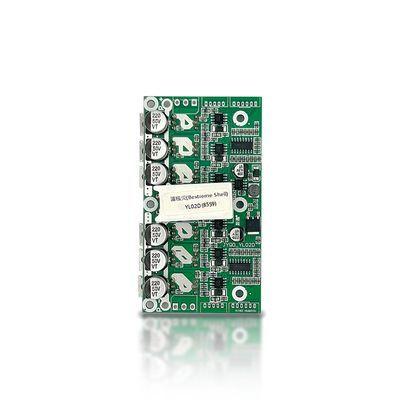

400Wx2 BLDC Motor Driver Board 12-36V for Hoverboards and EVs

Mindestbestellmenge:	1
Preis:	$16.92-17.91

Detail-Informationen

Beschreibung des Produkts

Einzelheiten

Herkunftsort

Jiangsu, China

Markenname

Bextremeshell

Modellnummer

JYQD-YL02D (8559)

Arbeitsspannung:

12-36Vdc

Nennleistung:

400W*2

Maximale Kraft:

540W*2

Maximaler Strom:

15a*2

Geschwindigkeitsregulierung:

PWM/0-5V

Steueralgorithmen:

Rechteckwelle

Abmessungen:

100 mmx59mmx20mm

Arbeitstemperatur:

-20 ℃ --85 ℃

Kupferdicke:

Geschwindigkeitssignalausgabe:

Eignung:

Motor mit Hall-Sensor

PWM -Frequenz:

1kHz-10kHz

Aussenbord-Stromversorgungsanlage Quelle:

5 V (≤ 300 mA)

Bremsspannungsbereich:

0-5V Lineare Bremse

Geschwindigkeitsregelspannung:

0-5V Lineare Geschwindigkeitsregulation

Hervorheben:

400W BLDC motor driver board

BLDC driver board for hoverboards

36V BLDC motor driver board

Beschreibung des Produkts

High Efficiency 12-36V, 500W*2 BLDC Motor Driver

Designed for electric hoverboards and other micro electric vehicles, this dual motor driver delivers reliable performance with precise speed control.

Product Specifications

Attribute	Value
Type	Controller Board
Supplier Type	General
Copper Thickness	1 oz
Functional Application	Driver
Working Voltage	12-36VDC
Rated Power	400W*2
Speed Regulation	PWM/0-5V
Suitability	Motor with hall sensor
Speed Signal Output	Yes
Control Algorithms	Square wave

Technical Parameters

Model No.: JYQD-YL02D(8559)
Power Input: 12-36VDC
Rated Power: 400W*2
Max Power: 540W*2
Max Current: 15A*2
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Dimensions: 100mm × 59mm × 20mm
Speed Control: PWM/0-5V
Working Temperature: -20℃ to 85℃

Applications

The JYQD-YL02D(8559) DC brushless driver board provides precise speed regulation from 0 to 100% and is suitable for various applications requiring reliable motor control.

Common Uses:

Electric skateboards & scooters
Electric wheelchairs & hoverboards
Drones & RC vehicles
Electric unicycles & mopeds
Industrial robots & automation equipment
CNC machines & conveyor systems
Self-propelled lawn mowers
Home appliances

Product Variants

JYQD-YL02D(8559) - Direct start version (NO LOCK function)
JYQD-YL02D(457E) - Direct start version (NO LOCK function)
JYQD-YL02D(99F2) - Direct start version (LOCK function)
JYQD-YL02D(C737) - Direct start version (LOCK function)

Wiring & Installation

Control Port Functions:

GND: Control signal ground
VR: Speed regulation (0-5V linear)
ZF: Forward/reverse control
M: Speed pulse signal output
EL: Brake function port
5V: Power source for external devices

Important Notes:

Verify hall wire sequence before connecting to motor
Add heatsink for power applications over 100W
Ensure proper heat dissipation for optimal performance

Dimensions & Manufacturing

Packaging

The BLDC motor driver is securely packed in an individual anti-static bag for protection during shipping and handling.

Frequently Asked Questions

Lead Time:

Samples: 5 days
Mass orders: 2-3 weeks

Minimum Order Quantity:

1 set for all series products

Warranty:

12 months from delivery date

Technical Support:

Dedicated 1-on-1 service and technical assistance
